WAGO 221 L-Boxx Mini

WAGO 221 L-Boxx Mini
WAGO 221 L-Boxx Mini - Image 2
WAGO 221 L-Boxx Mini - Image 3
WAGO 221 L-Boxx Mini - Image 4
WAGO 221 L-Boxx Mini - Image 5

The Wago L-BOXX Mini is a complete set of 221 Splicing Connectors in a stackable carry case. Ideal for fast, easy and safe wiring.

Product Specs

  • Compatibility

    0.14 to 6 mm² (24–10 AWG)

  • Includes

    Varies. Refer to Unit Specs

The L-BOXX Mini assorted wire connector kit from Wago, contains a selection of 221 series 4mm wire connectors and 6mm high-gauge wire connectors, all in an easy to store and carry case.

Using WAGO 221 Wire Connectors makes for solderless and secure connections on all your LED projects. To make a connection simply pull the lever up, insert your LED wire and push the lever back down.

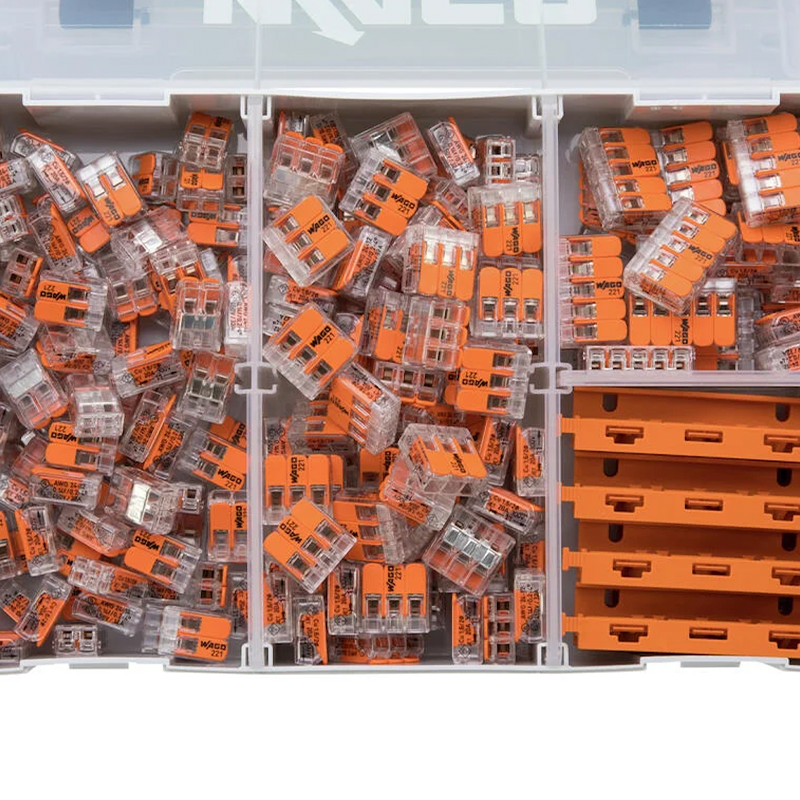

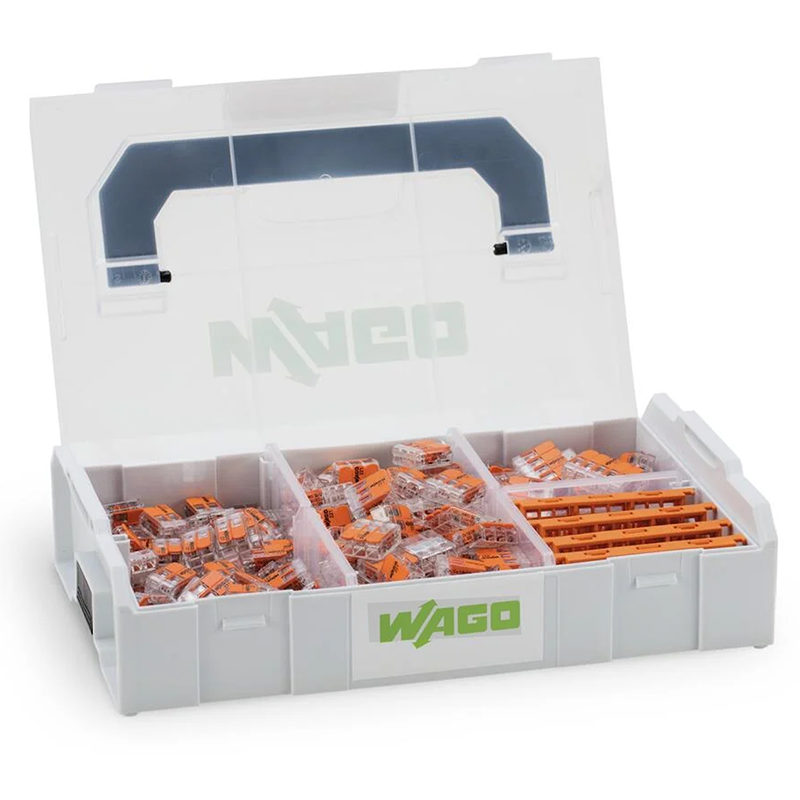

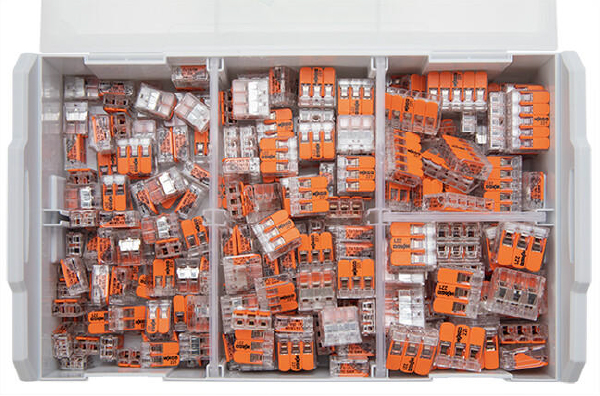

The Wago L-BOXX Mini includes:

  • 100 x  221-412 Double Wire Connectors (4mm)
  • 100 x 221-413 Triple Wire Connectors (4mm)
  • 25 x 221-415 Five Wire Connectors (4mm)
  • 30 x 221-613 High Gauge Triple Wire Connectors (6mm)
  • 1 x 4 Compartment L-BOXX Mini Sortimo Carry Case

Find all the latest product specifications and guides below:

Frequently asked questions

The Wago L-BOXX Mini and Wago 221 Wire Connectors are suited to the following applications:

  • 24V and 12V applications
  • Cabinet Lighting
  • Lightboxes
  • Commercial Lighting
  • Shopfitting
  • Architectural Lighting
  • Suitable for use with all conductor types
  • Suitable for outdoor use when combined with the Wago Gelbox

Follow these steps on how to use the Wago L-BOXX Mini and 221 Wire Connectors.

  1. Strip your LED wire/conductor to 11mm (0.43”).
  2. Open the clamping unit with the integrated lever and insert your conductor.
  3. Lower the lever to close the clamp.
  4. Ensure your wire has been inserted correctly.

The Wago L-BOXX Mini and 221 Wire Connectors can be used alongside the Wago Gelbox waterproof protection box, for a complete watertight outdoor wiring solution.
