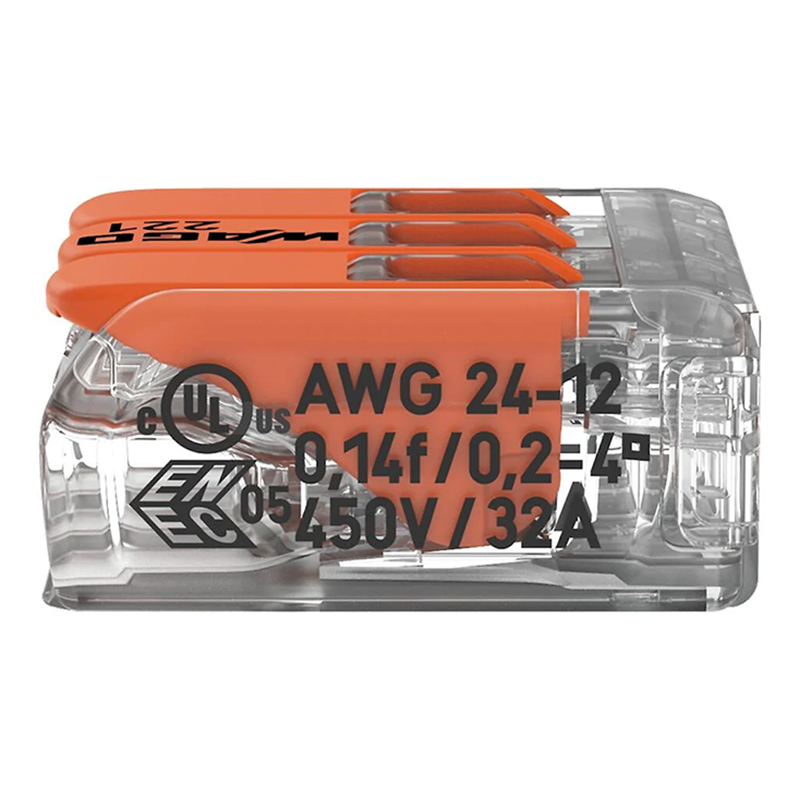

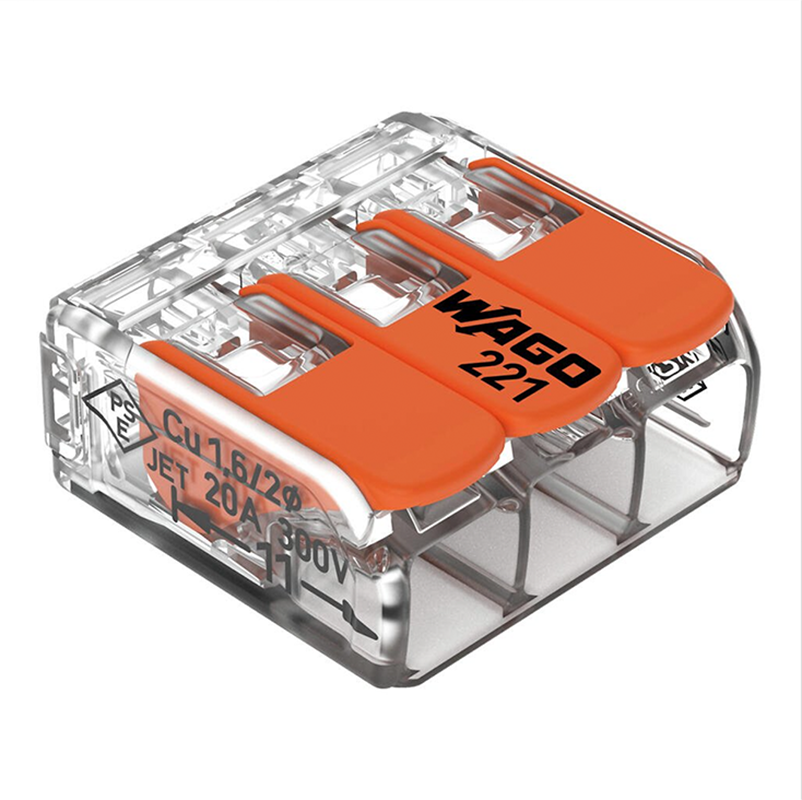

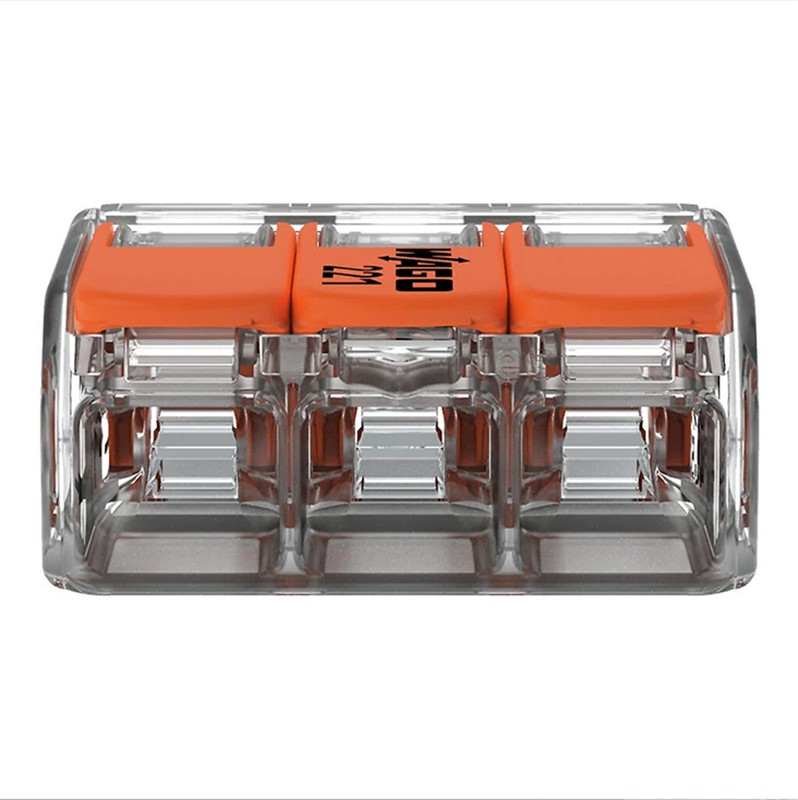

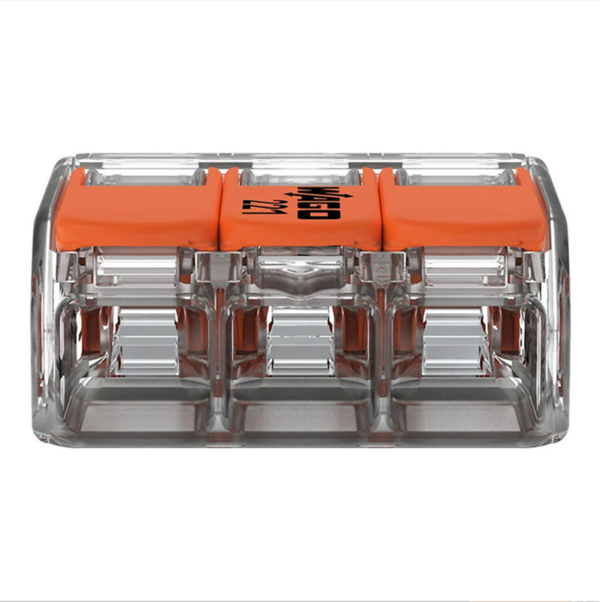

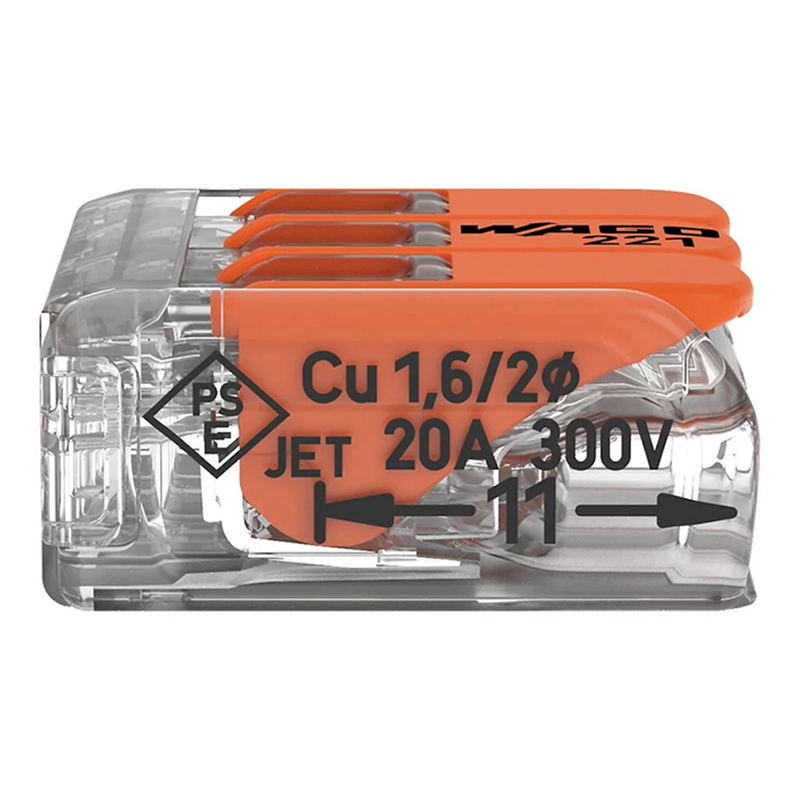

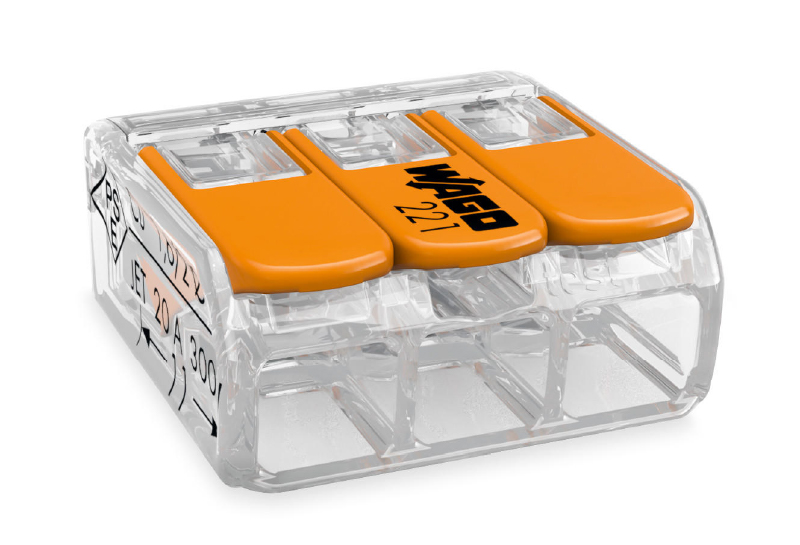

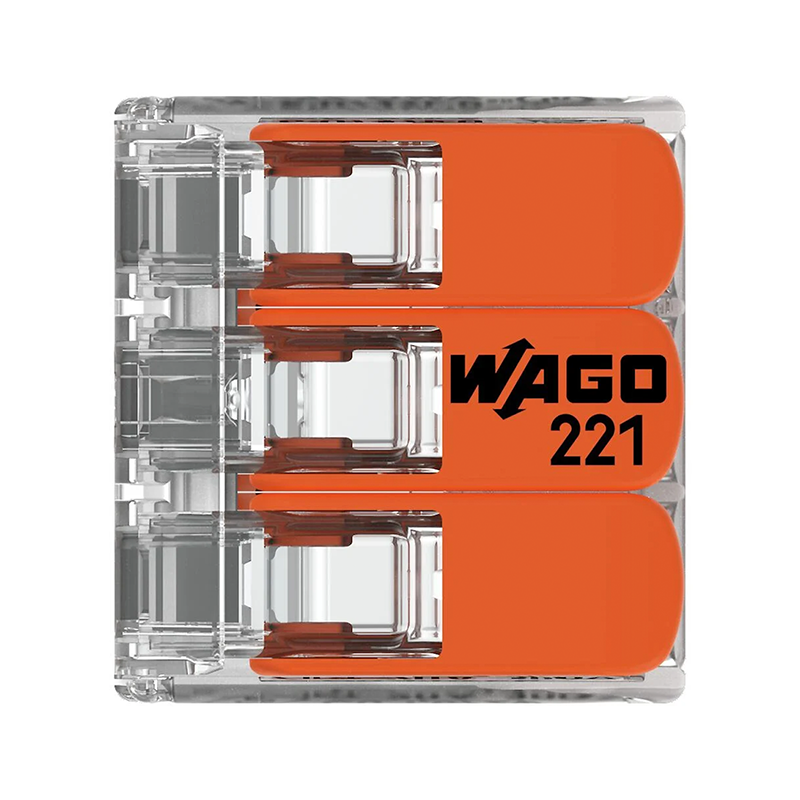

Triple Wire Connectors

LED wiring just got faster, safer and easier with the compact Wago 221 Triple Wire Splicing Connector clips.

Product Specs

  • Dimensions

    18 x 18 x 8.5 mm

  • Compatibility

    0.14 to 4 mm² (24–12 AWG)

  • Power Output

    300V/20A

  • Includes

    50pcs Per Box

With a unique compact design, the Wago 221 Triple Connectors make connection possible without tools, even in the most difficult to access and tight installations.

And with the transparent housing, you can ensure your wiring has been inserted correctly. Simply strip your LED wire to 11mm, open the clamping unit and insert your conductor, then lower the lever to close the clamp for a solderless connection. These compact triple splicing connectors are suitable for all conductor types. Available in 2, 3 and 5 conductor splicing connectors, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Frequently asked questions

Wago 221 Triple Wire Splicing Connectors are suited to the following applications:

  • 24V and 12V applications
  • Cabinet Lighting
  • Lightboxes
  • Commercial Lighting
  • Shopfitting
  • Architectural Lighting
  • Suitable for use with all conductor types
  • Suitable for outdoor use when combined with the Wago Gelbox

Follow these steps on how to install the Wago 221 Triple Wire Connectors.

  1. Strip your LED wire/conductor to 11mm (0.43”).
  2. Open the clamping unit with the integrated lever and insert your conductor.
  3. Lower the lever to close the clamp.
  4. Ensure your wire has been inserted correctly.

The Wago 221 Triple Wire Connectors can be used alongside the Wago Gelbox waterproof protection box, for a complete watertight outdoor wiring solution.

Contact our team to discuss exactly how many LED modules you’ll need for your next LED lighting or signage project.
