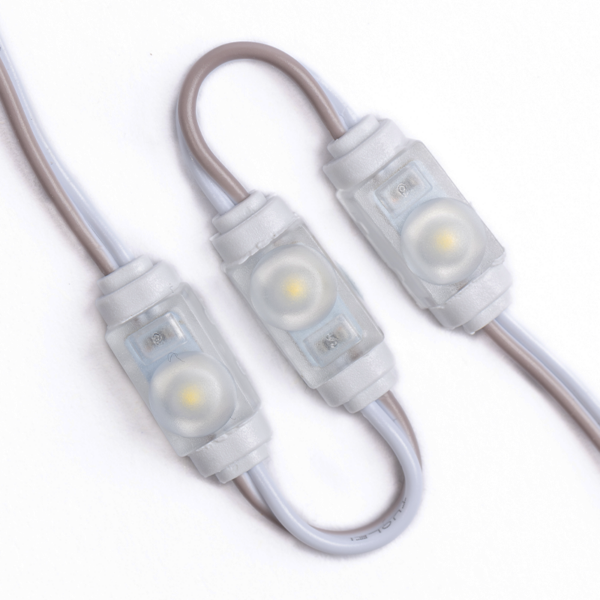

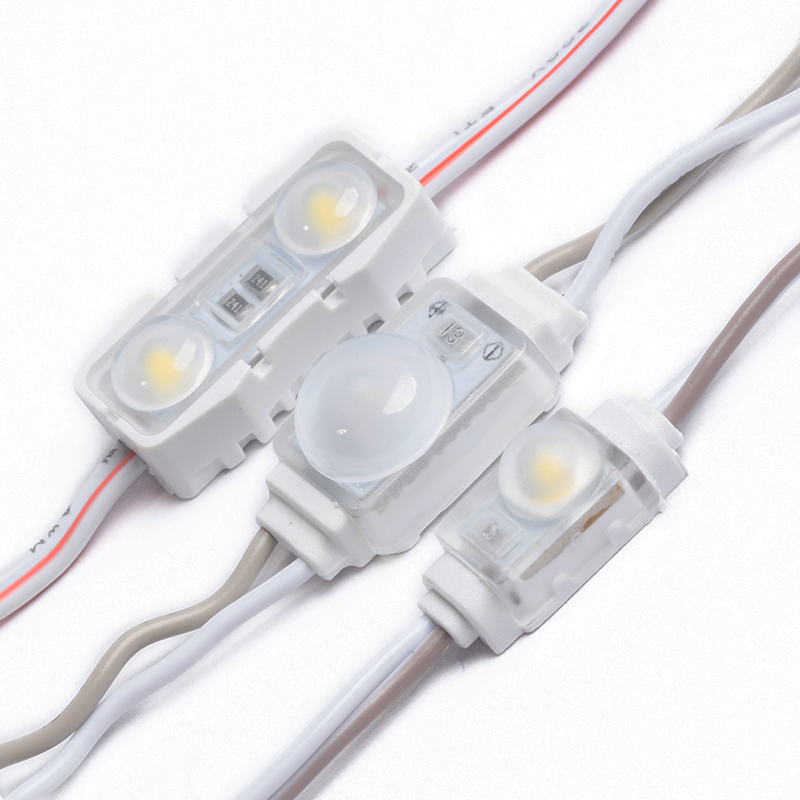

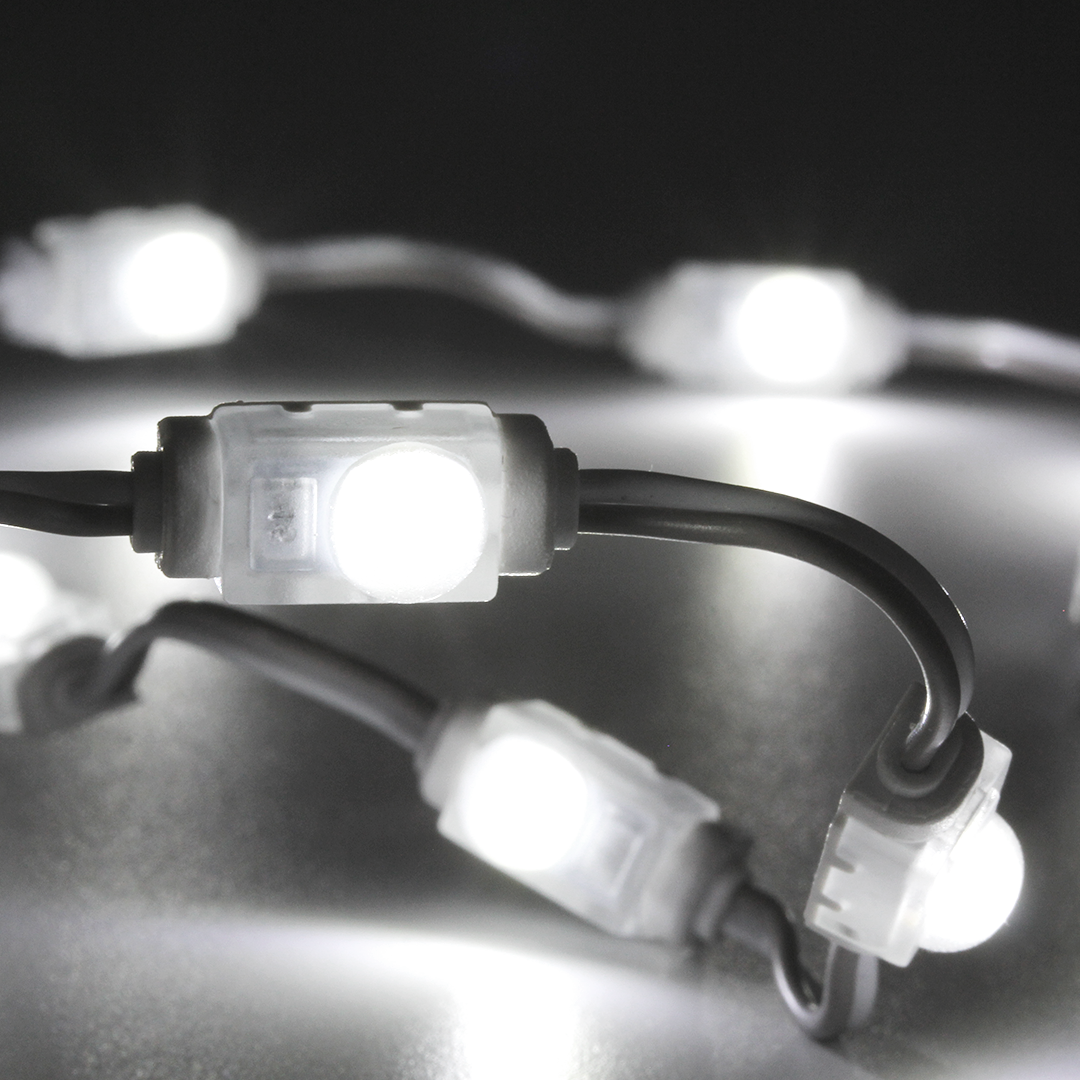

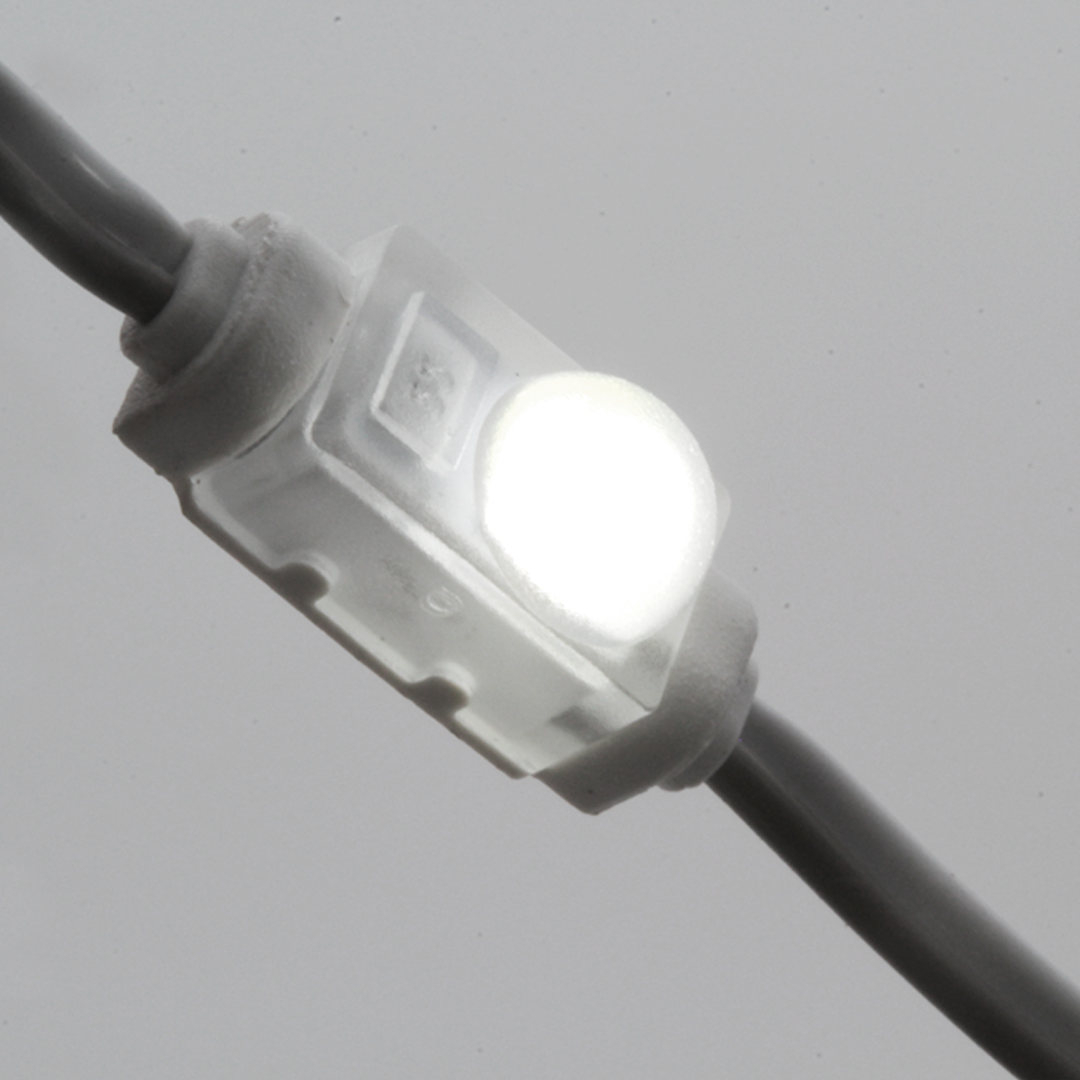

Introducing Mini-Slim, the smallest LED module in the Bounce range, ideal for tight and narrow lighting situations.

Product Specs

  • Power Output

    0.24W (12V)

  • Lumens

    28lm

  • Colours Available

    6500K

  • Warranty

    5 Years

  • Dimensions

    15 x 6 x 8mm

  • Max Series

    50 Modules Per Series

  • Includes

    50 Modules Per Pack

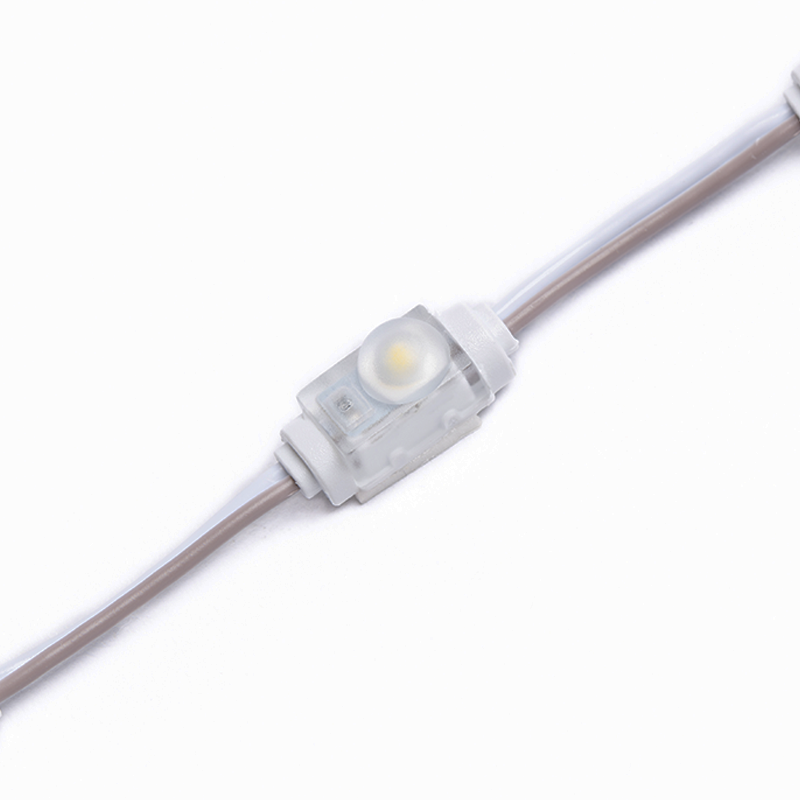

With a unique ultra compact construction, the Mini-Slim is so small, you have to see it to believe it!

Ideal for narrow channel letters and light spaces of 30-60mm in depth. Sporting the latest 160º “Batwing” optic design and an impressive series length of 50 modules per chain, you can’t beat the Mini-Slim LED module for your indoor and outdoor lighting projects. Mini-Slim is available in cool white (6500K), with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Colour

3000K, 6500K
IP Rating

IP67

Installation guide

1

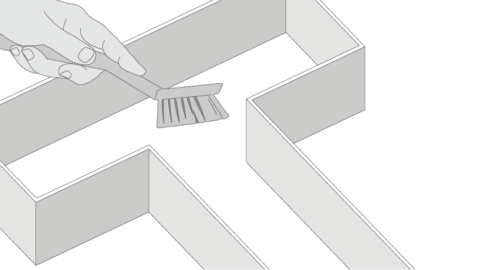

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

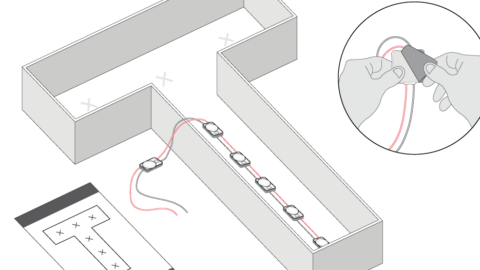

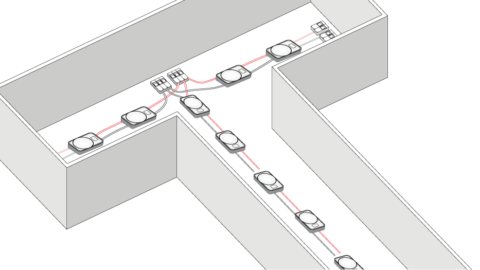

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3
Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4

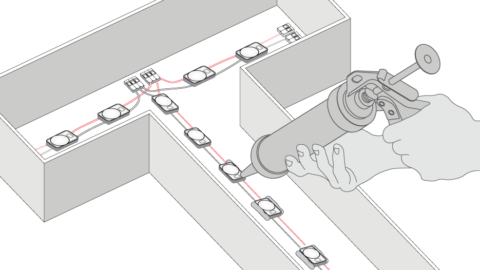

Secure the LEDs by gluing modules in place.
5

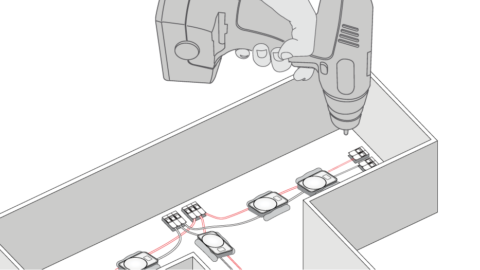

Drill holes out the back of the letters or sign box for connection to DC power supply.
6
Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

Our Mini-Slim LED module has been designed for many indoor and outdoor lighting installations, and is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Channel Letters
  • Indoor and outdoor applications
  • Backlit Installations
  • Dimmable (with controller)

Follow these steps on how to install the Mini-Slim LED module.

  1. Ensure the inside of your sign box is clean and free of debris.
  2. Using the supplied LED layout, remove tape from the rear side of the LED module and stick into place.
  3. Low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel.
  4. Secure the LEDs by glueing modules in place.
  5. Drill holes out the back of your letter or sign box for connection to DC power supply.
  6. Wire the LED modules from the sign to the power supply.
  7. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

We have a range of dimmable drivers and controllers, suitable for use with the Mini-Slim LED module.

Use our free layout service to work out how many Mini-Slim LED modules you’ll need for your next project. Fill out the form on our contact page and the team will get back to you in 48 hours.
