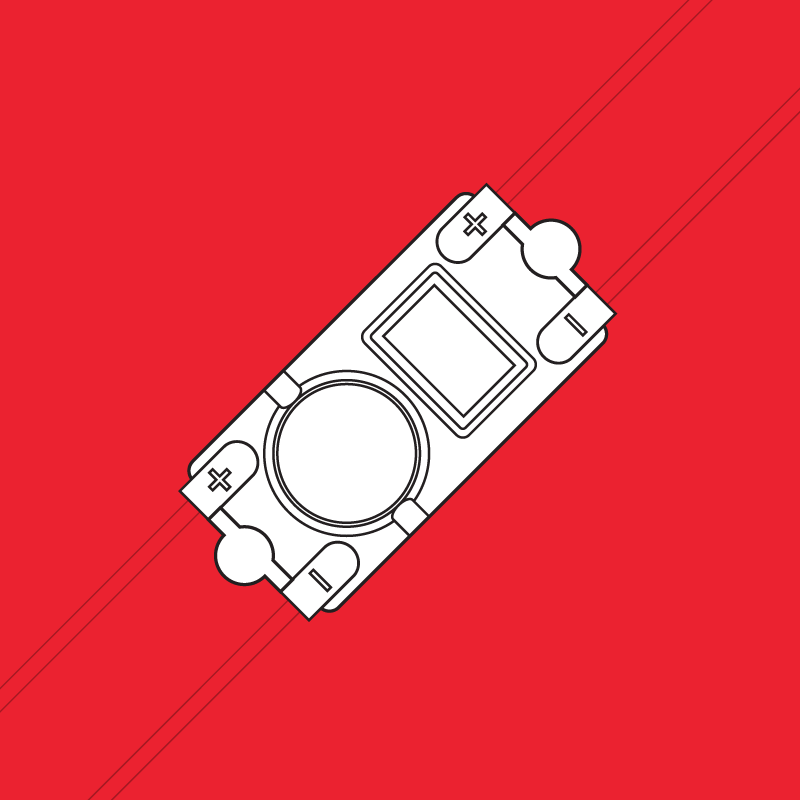

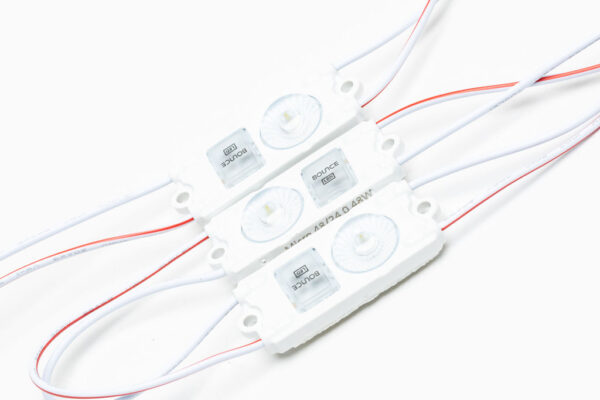

Meet Micro 24V, our versatile small LED module that’s perfect for tight corners and narrow channel letters.

Product Specs

  • Power Output

    0.48W (24V)

  • Lumens

    82 lm/module

  • Colours Available

    3000k, 4000k, 5000k, 6500k

  • Dimensions

    42 x 20 x 7mm

  • Range

    40-100mm

  • Ingress Protection

    IP67

  • Warranty

    8 Years

  • Max Series

    80 Modules Per Series

  • Includes

    80 Modules Per Pack

Our most popular signage module range supercharged in 24V! As a dimmable, all-purpose small LED module, Micro 24V is ideal for tight cornered cabinets, narrow stroke channel letters, small lightboxes and backlit lighting projects.

With the ability to run an amazing 80 LED modules per series with constant current technology, Micro is an excellent indoor and outdoor LED lighting module, with the latest 180º “Batwing” optic design. Our Micro LED module is available in 3000K (warm white), 4000K (neutral),  5000K (daylight) and 6500K (cool white) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Colour

3000K, 4000K, 5000K, 6500K

IP Rating

IP67

Installation guide

1

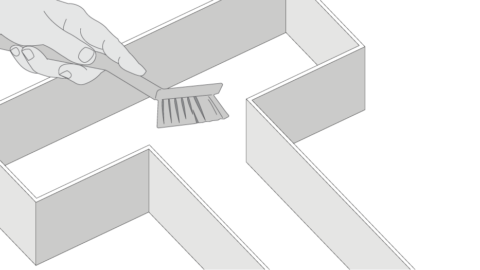

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

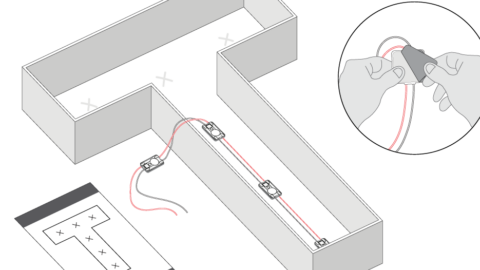

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3

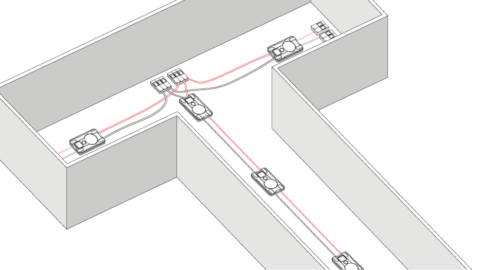

Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4

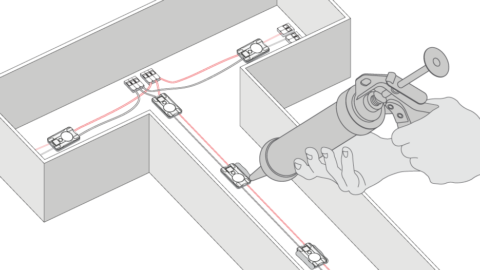

Secure the LEDs by gluing modules in place.
5

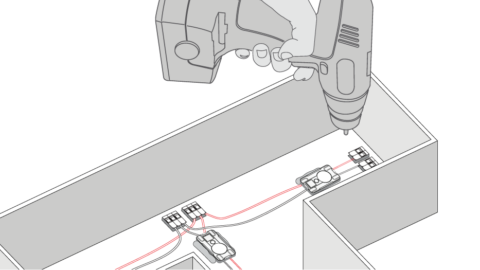

Drill holes out the back of the letters or sign box for connection to DC power supply.
6

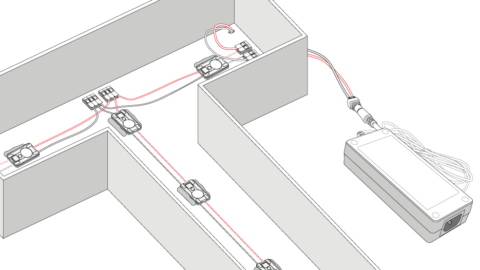

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
