Looking for maximum brightness? Choose Luminaire 24V, our super bright LED module for oversized lighting and sky signs.

Product Specs

  • Power Output

    2.0W (24V)

  • Lumens

    340lm/module

  • Colours Available

    6500K

  • Dimensions

    48 x 51 x 7mm

  • Range

    150-300mm

  • Ingress Protection

    IP67

  • Warranty

    8 Years

  • Max Series

    40 Modules Per Series

  • Includes

    40 Modules Per Pack

Our most popular signage module range supercharged in 24V! If you need a lot of light, then Luminaire 24V is the module for the job.

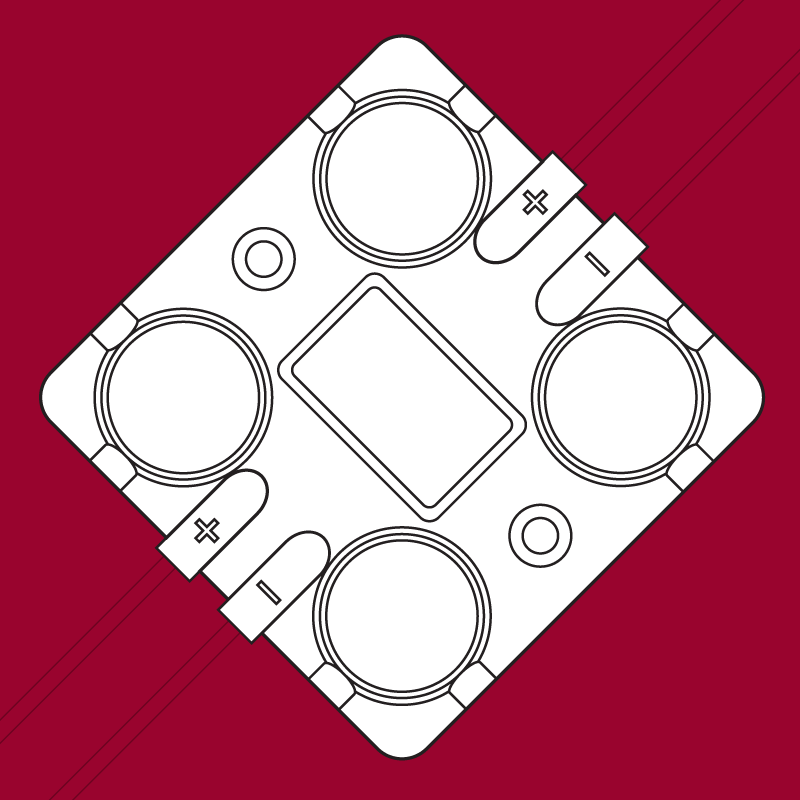

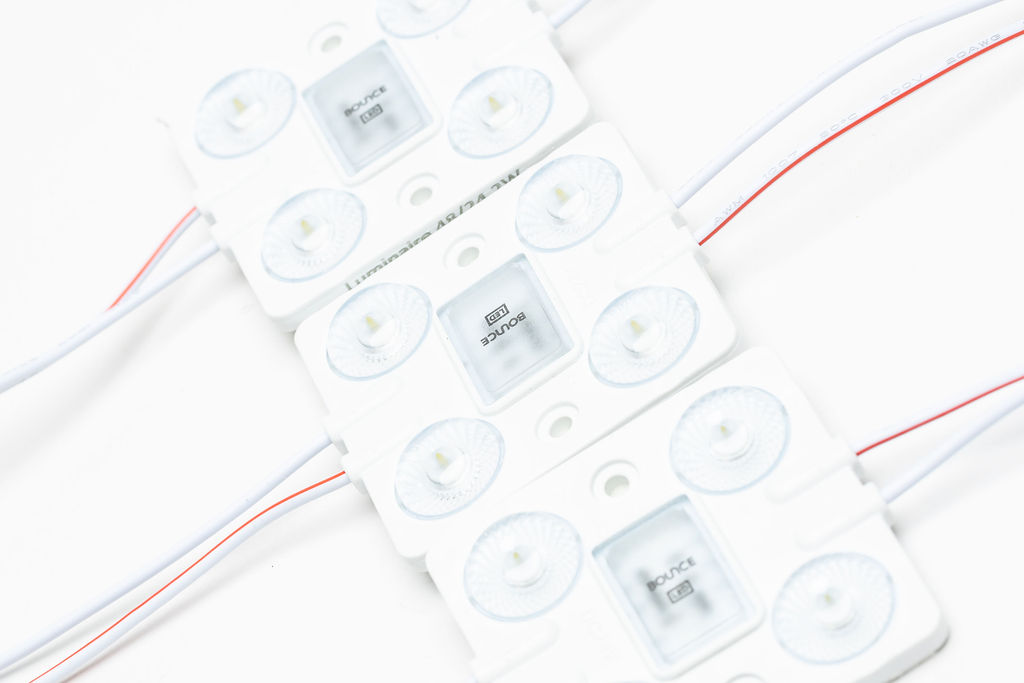

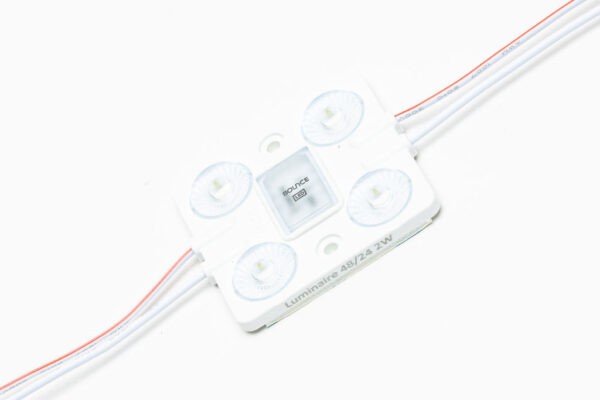

This super bright LED module has a remarkable pitch of 300mm, radiating 340 lumens per module. Operating in the 150-300mm depth range makes it ideal for oversized channel letters, extra large light boxes and sky signs. With the ability to run an impressive 35 LED modules per series with constant current technology, Luminaire is an excellent indoor and outdoor LED lighting module, with the latest 180º “Batwing” optic design. Our Luminaire LED module is available in 3000K (warm white) and 6500K (cool white) colour variants, both with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Colour

3000K, 6500K

IP Rating

IP67

Installation guide

1

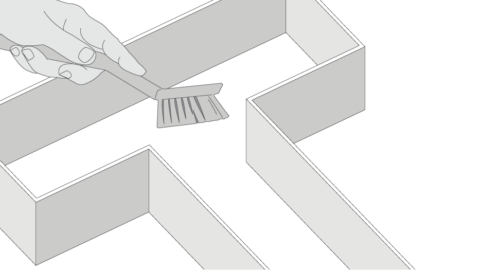

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

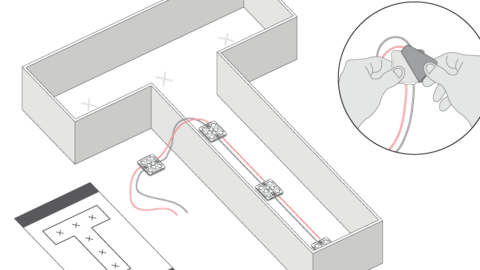

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3
Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4
Secure the LEDs by gluing modules in place.
5

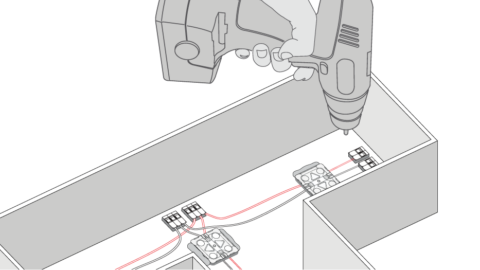

Drill holes out the back of the letters or sign box for connection to DC power supply
6

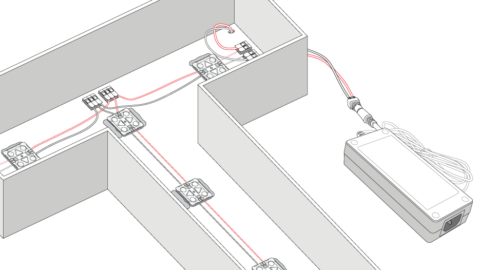

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
