Blaster 24V

Blaster 24V
Blaster 24V - Image 2
Blaster 24V - Image 3

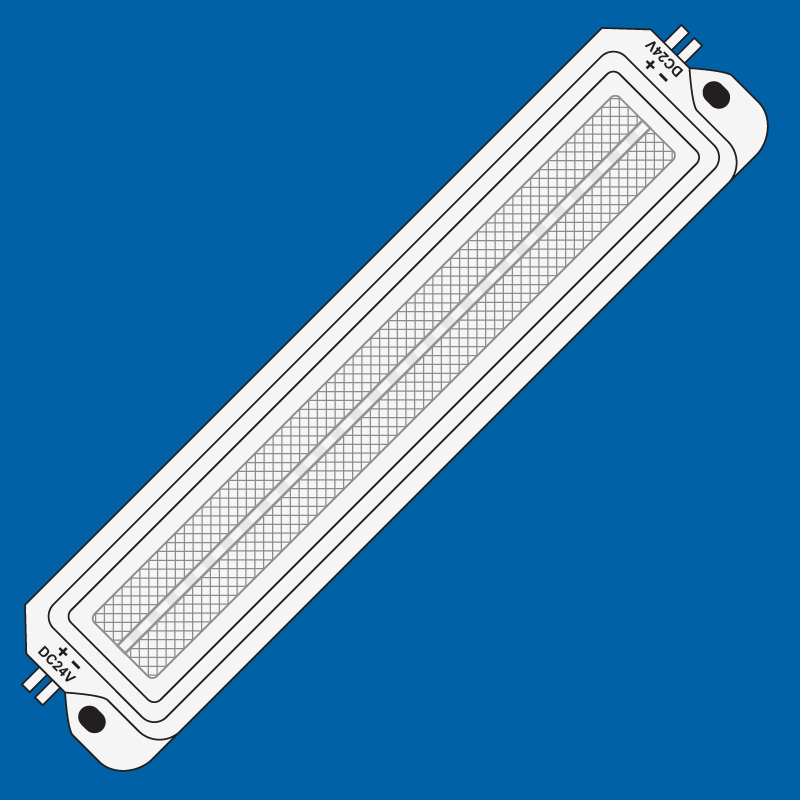

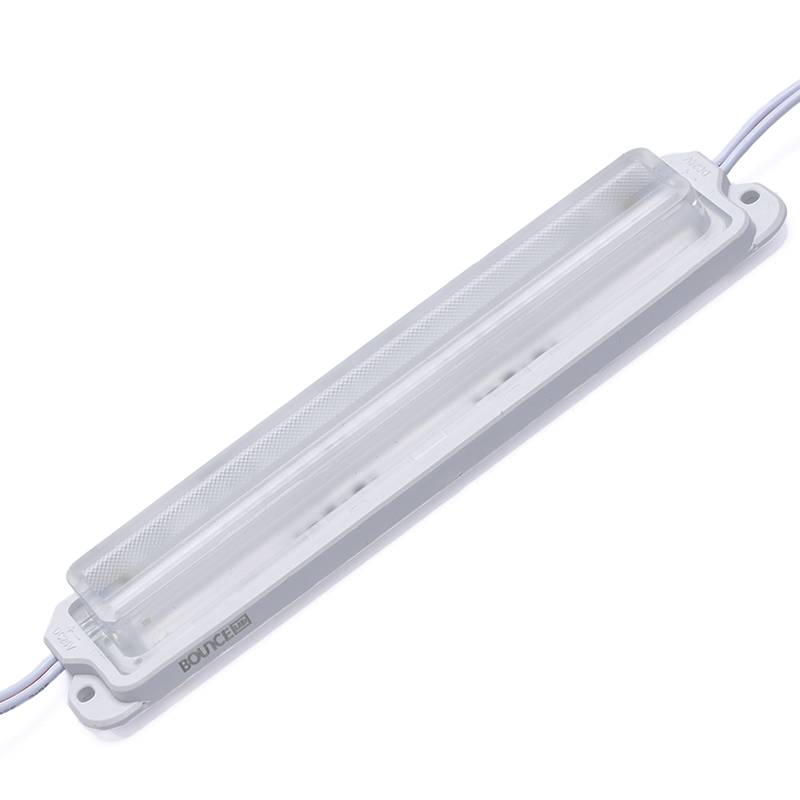

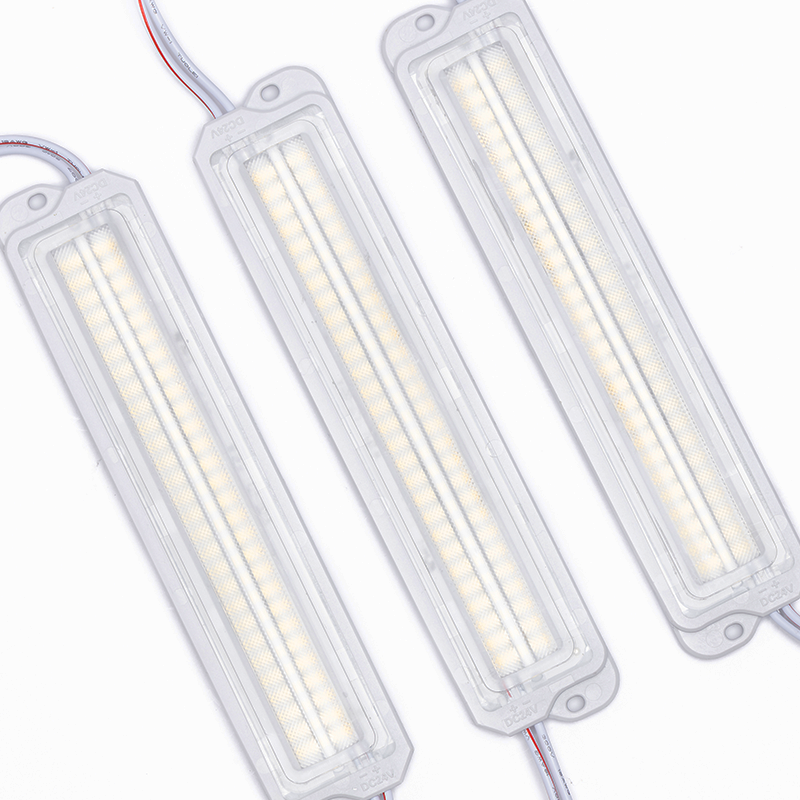

Blaster is the ultimate side-lit LED module for large cabinets and lightboxes.

Product Specs

  • Power Output

    7.2W (24V)

  • Lumens

    750 lm

  • Colours Available

    6500K

  • Ingress Protection

    IP67

  • Dimensions

    36.2 x 169.5 x 20 mm

  • Warranty

    7 Years

  • Max Series

    20 Modules Per Series

  • Includes

    40 Modules Per Pack

For large LED cabinets, light-boxes and signs, you can’t go past the Blaster.

The Blaster (24V) is an impressive 7.2W per module, that projects a sheet of light up to a remarkable 1.5m. With even and efficient illumination of lightboxes 200mm depth and greater, the Blaster is the ultimate cabinet LED module for indoor and outdoor lighting installations. Blaster is available in Cool White (6500K), with an incredible 7 year warranty.

Find all the latest product specifications and guides below:

Colour

3000K, 6000K
IP Rating

IP67

Installation guide

1

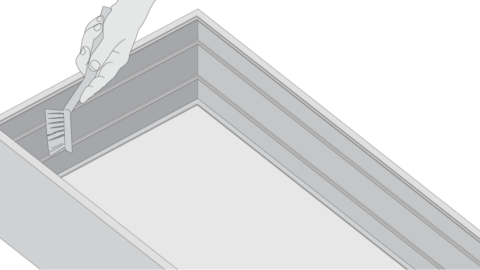

Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
2

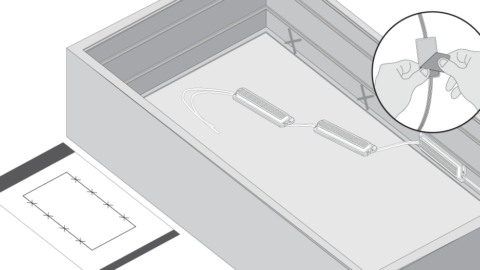

Using supplied LED layout, remove tape from module and press in place. For best illumination, install modules two-thirds of the way towards the back of the box for single-sided signs, centralised for double-sided signs.
3

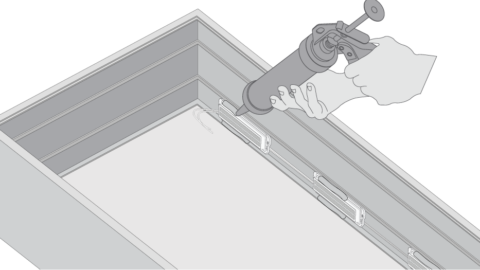

Secure LEDs by gluing modules in place.
4

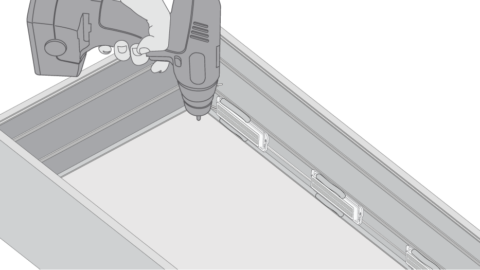

Drill a suitably sized hole out the back of the sign for connection to DC power supply.
5
Connect modules from the sign to power supply, making sure to not exceed the maximum modules per series. Exceeding the maximum will lead to voltage drop and uneven illumination.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
