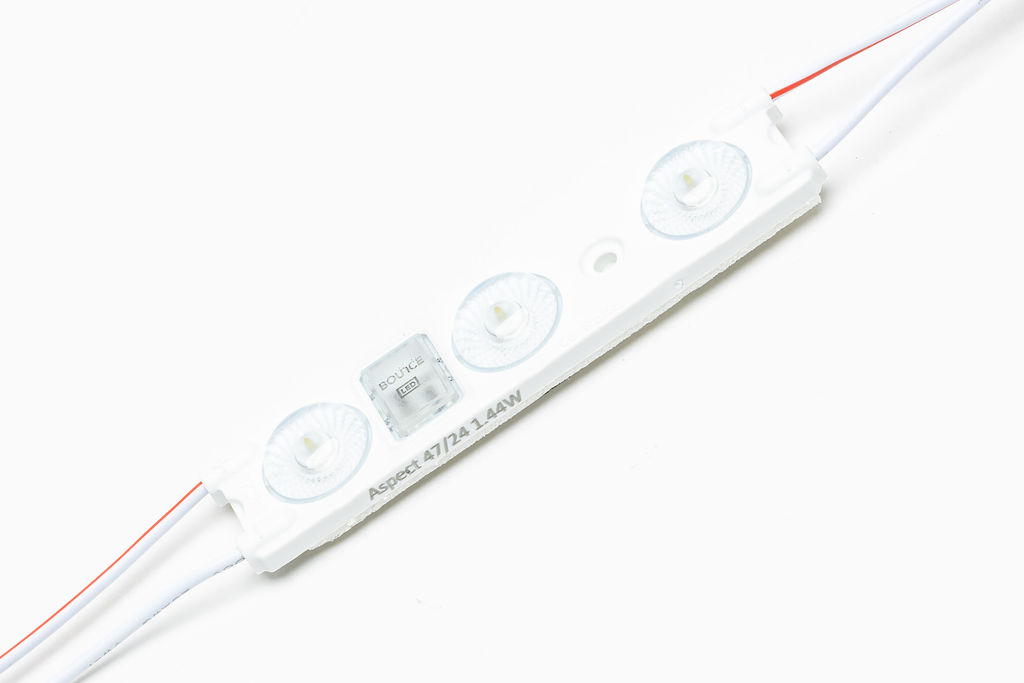

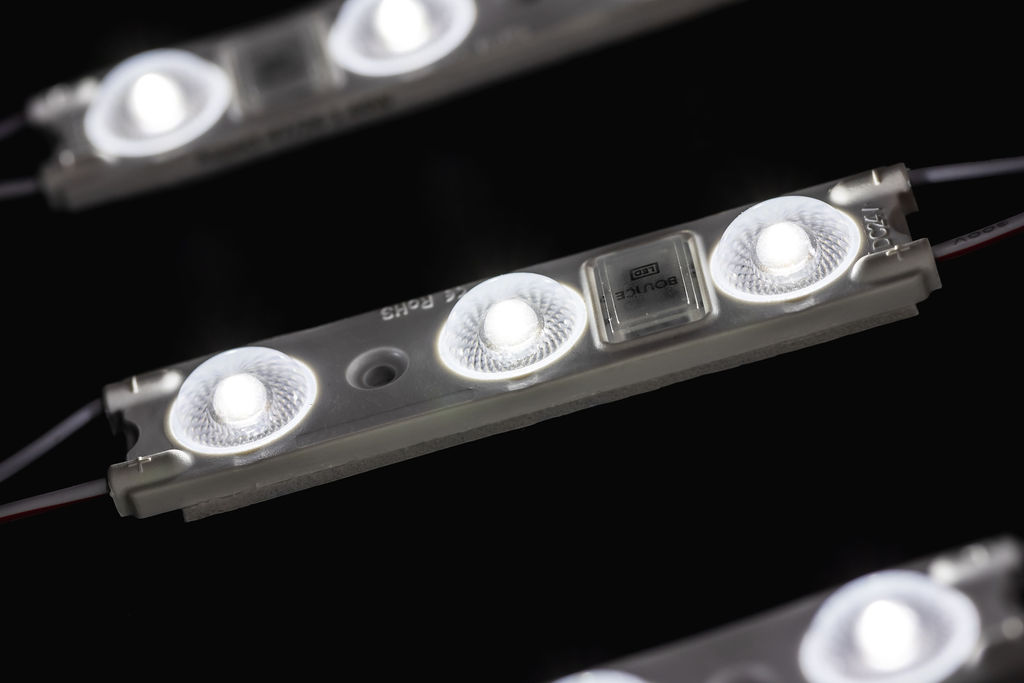

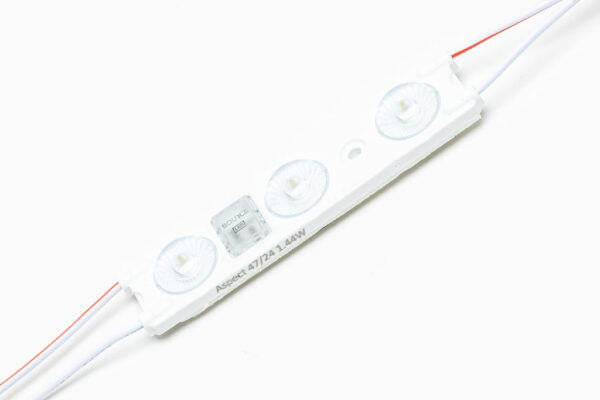

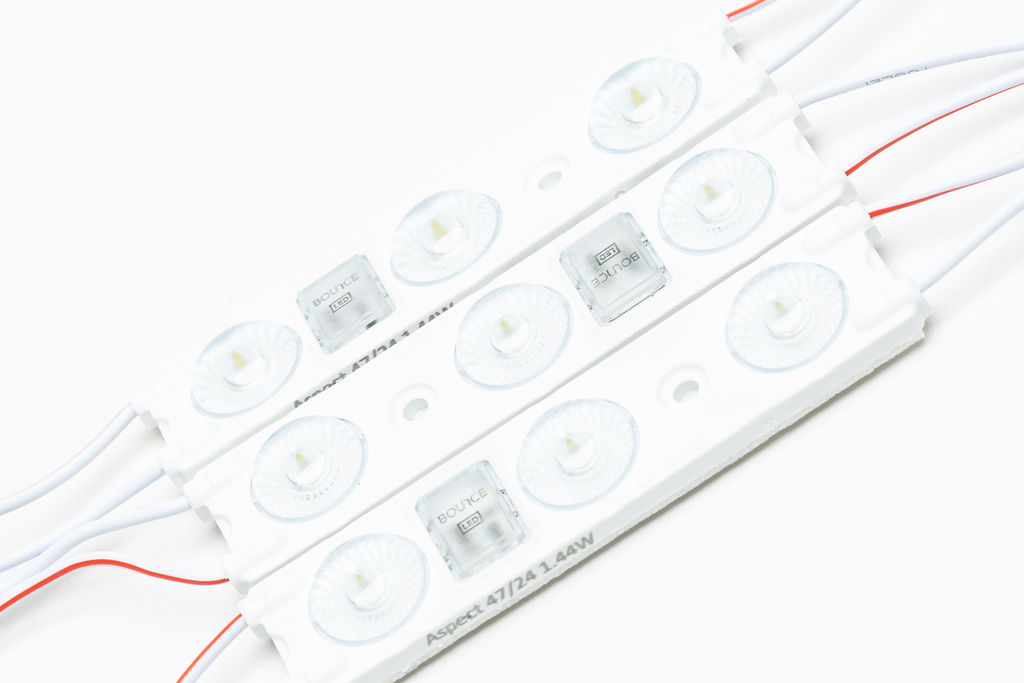

Up the ante with Aspect 24V, our super bright LED module for commercial lighting.

Product Specs

  • Power Output

    1.44W (24V)

  • Lumens

    252lm/module

  • Colours Available

    6500K

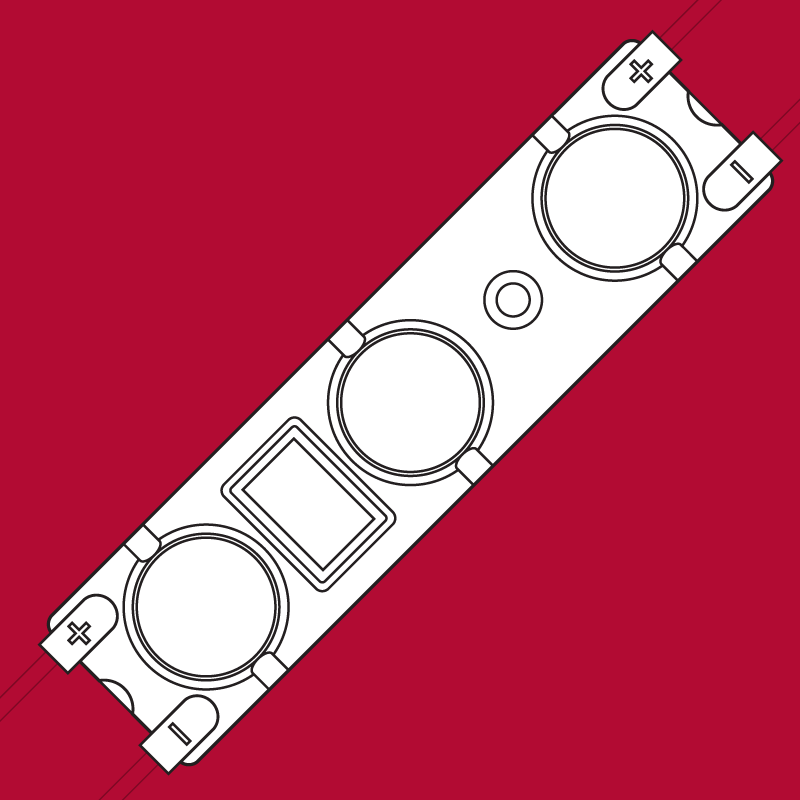

  • Dimensions

    84 x 20 x 7mm

  • Range

    120-200mm

  • Ingress Protection

    IP67

  • Warranty

    8 Years

  • Max Series

    40 Modules Per Series

  • Includes

    40 Modules Per Pack

Our most popular signage module range supercharged in 24V! Looking for a super bright LED module for commercial signage & lighting – look no further than Aspect 24V.

It’s impressive pitch makes it ideal for large channel letters and lightboxes. With the ability to run an impressive 50 LED modules per series with constant current technology, Aspect is an excellent indoor and outdoor LED lighting module, with the latest 180º “Batwing” optic design. Our Aspect LED module is available in 6500K (cool white), with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Colour

6500K

IP Rating

IP67

Installation guide

1

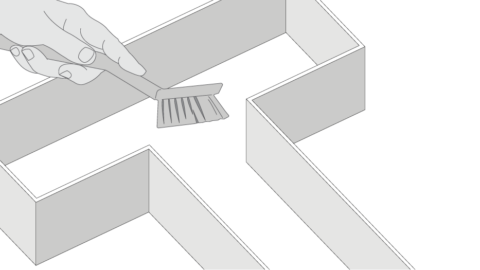

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

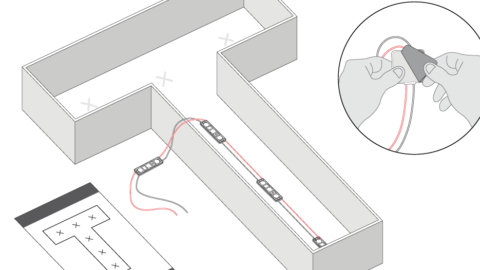

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3

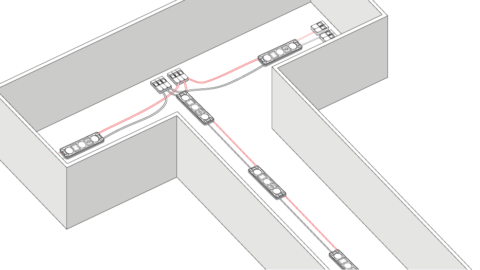

Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4

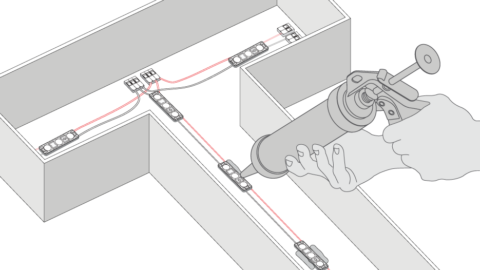

Secure the LEDs by gluing modules in place.
5

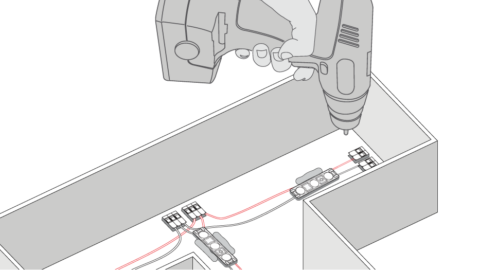

Drill holes out the back of the letters or sign box for connection to DC power supply
6

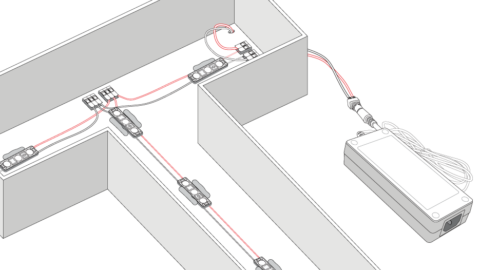

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
