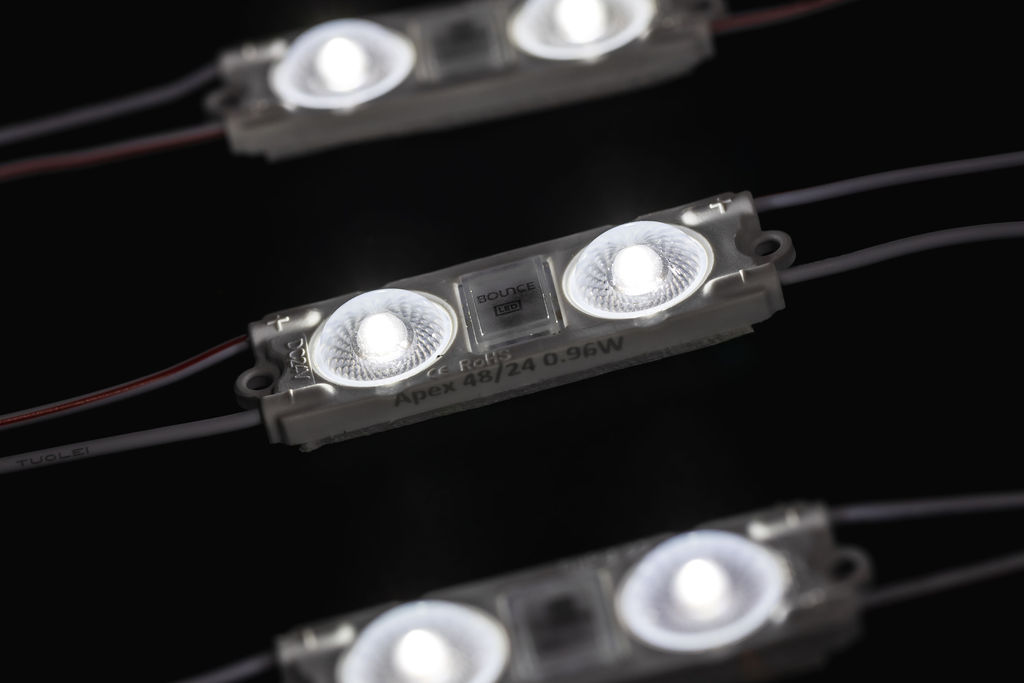

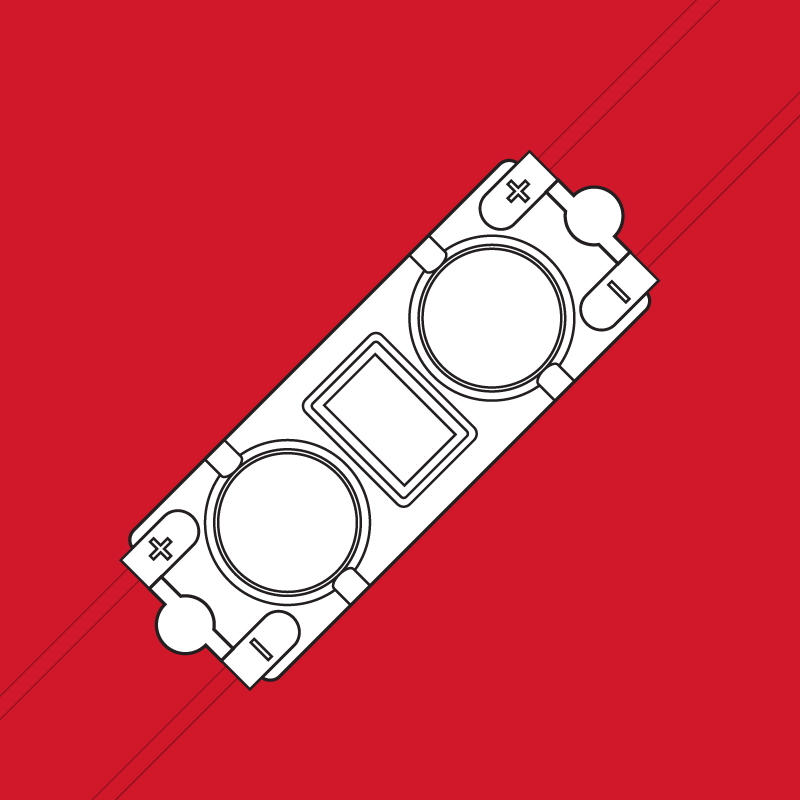

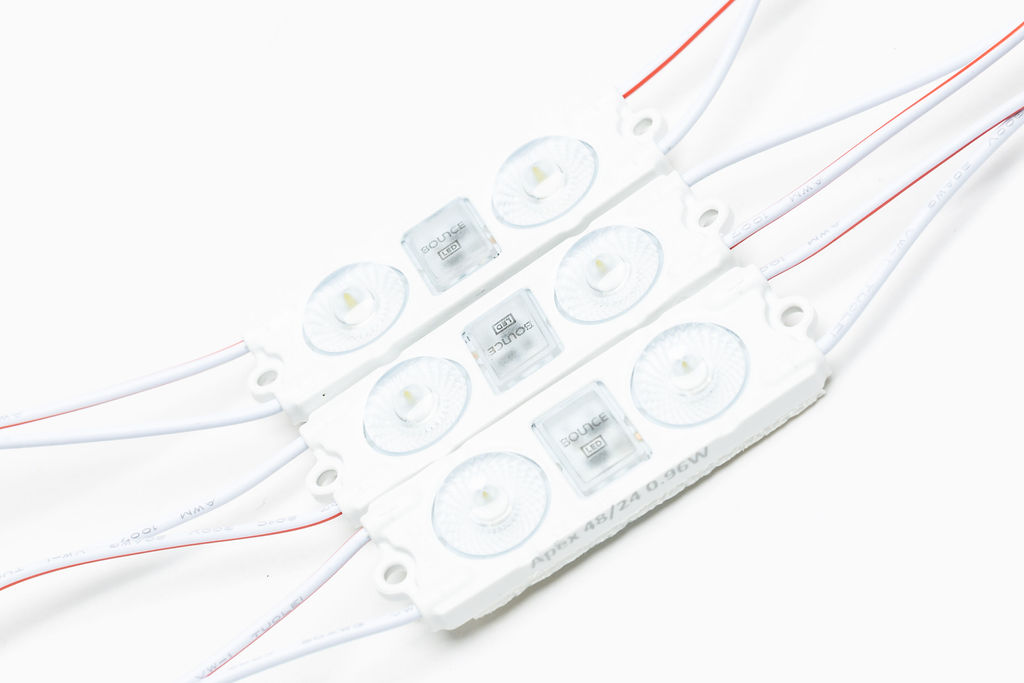

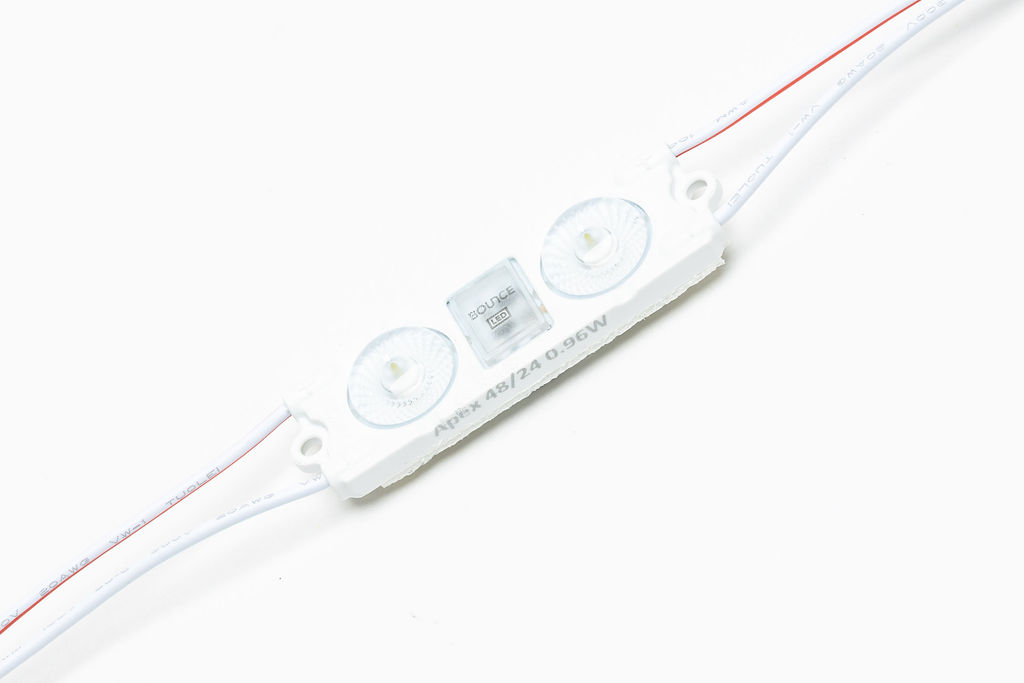

Meet Apex 24V, a punchy LED module that’s a powerhouse in the signage industry.

Product Specs

  • Power Output

    0.96w (24V)

  • Lumens

    164lm/module

  • Colours Available

    6500k

  • Dimensions

    56 x 20 x 7 mm

  • Range

    70-150mm

  • Ingress Protection

    IP67

  • Warranty

    8 Years

  • Max Series

    50 Modules Per Series

  • Includes

    50 Modules Per Pack

Our most popular signage module range supercharged in 24V! Similar in features to our Micro LED module, the agile Apex 24V is ideal for sign cabinets and lightboxes, and comfortably navigates medium sized channel letters.

With the ability to run an amazing 50 LED modules per series with constant current technology, Apex is an excellent indoor and outdoor LED lighting module, with the latest 180º “Batwing” optic design. Our Apex LED module is available 3000K (warm white), 4000K (neutral),  5000K (daylight) and 6500K (cool white) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Colour

3000K, 4000K, 5000K, 6500K

IP Rating

IP67

Installation guide

1

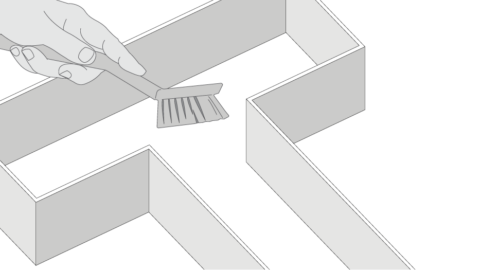

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

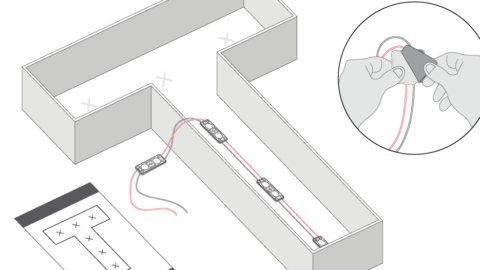

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3

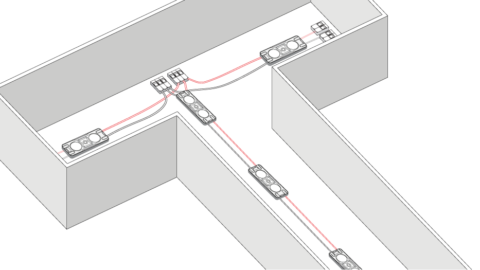

Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4

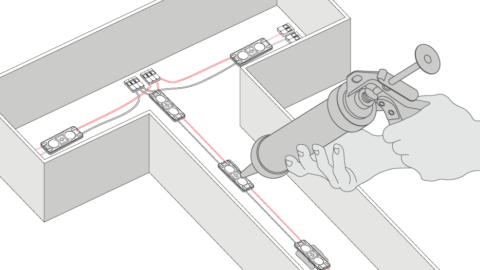

Secure the LEDs by gluing modules in place.
5

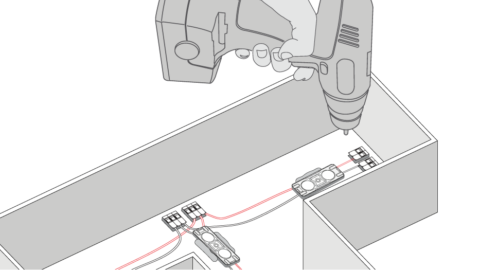

Drill holes out the back of the letters or sign box for connection to DC power supply.
6

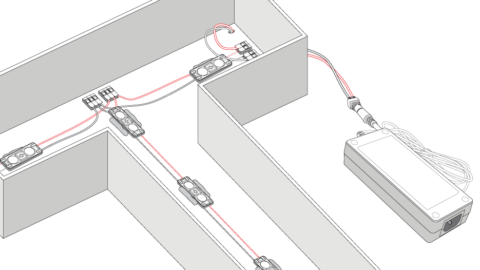

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
